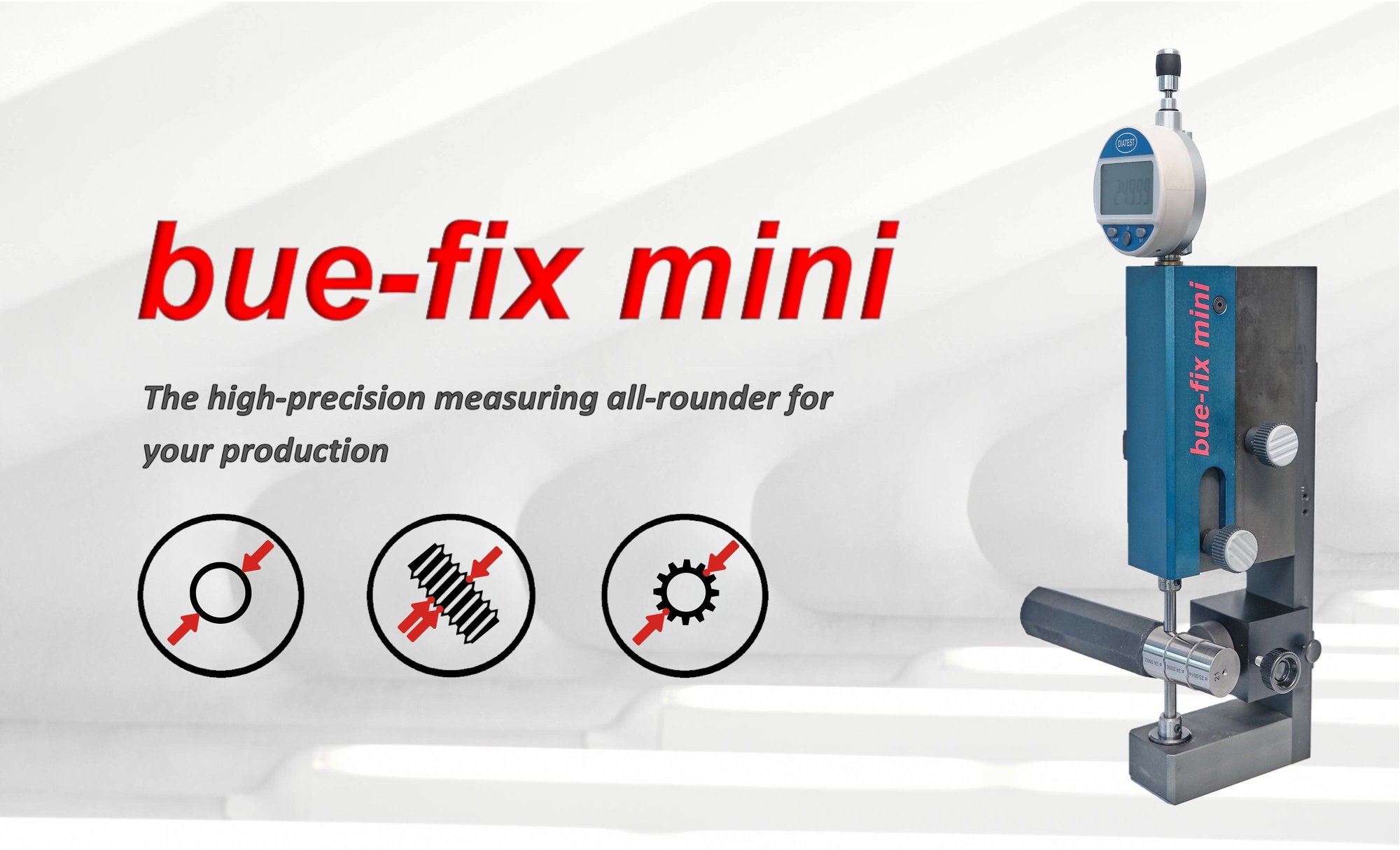

High-precision measuring table
for universal measuring tasks

bf50_3-1

1

External diameter

Schober Messtechnik_55-1

High-precision measurement of external diameters and lengths

Vertical or horizontal orientation of the measuring instrument

height-adjustable and easy-to-mount workpiece support

Bue-Fix_7

2

External thread

gw_big

High-precision measurement of thread flank diameter

Attachable measuring inserts (3-wire method)

Standard and special thread dimensions available

Bue-Fix_13

3

External teeth

Bue fix (1 von 3)-2-3

Highly accurate measurement of the diametrical two-sphere dimension (Ma)

Screw-in ball measuring inserts made of carbide

Standard and special ball diameters available

Bue fix (1 von 1)-2

Specifications

Measuring range:

0,0 - 50,0 mm *

Absolute measuring distance:

50,0 mm

Repeatability:

< 1,0 µm

Parallelism (measuring surfaces):

< 1,0 µm

Clamping hole (display device):

Ø 8 h6 (standard)

* = Special measuring ranges on request

Schober Messtechnik_63-1

Accessories

me_small

Fixtures:

For the bue-fix mini
external measuring device, a variety of different measuring inserts made of solid carbide are available.

Special measuring inserts are also available on request.

Special measuring tables:

On request, we provide you with f.e. floating measuring slides for clamping workpieces between tips and much more.
